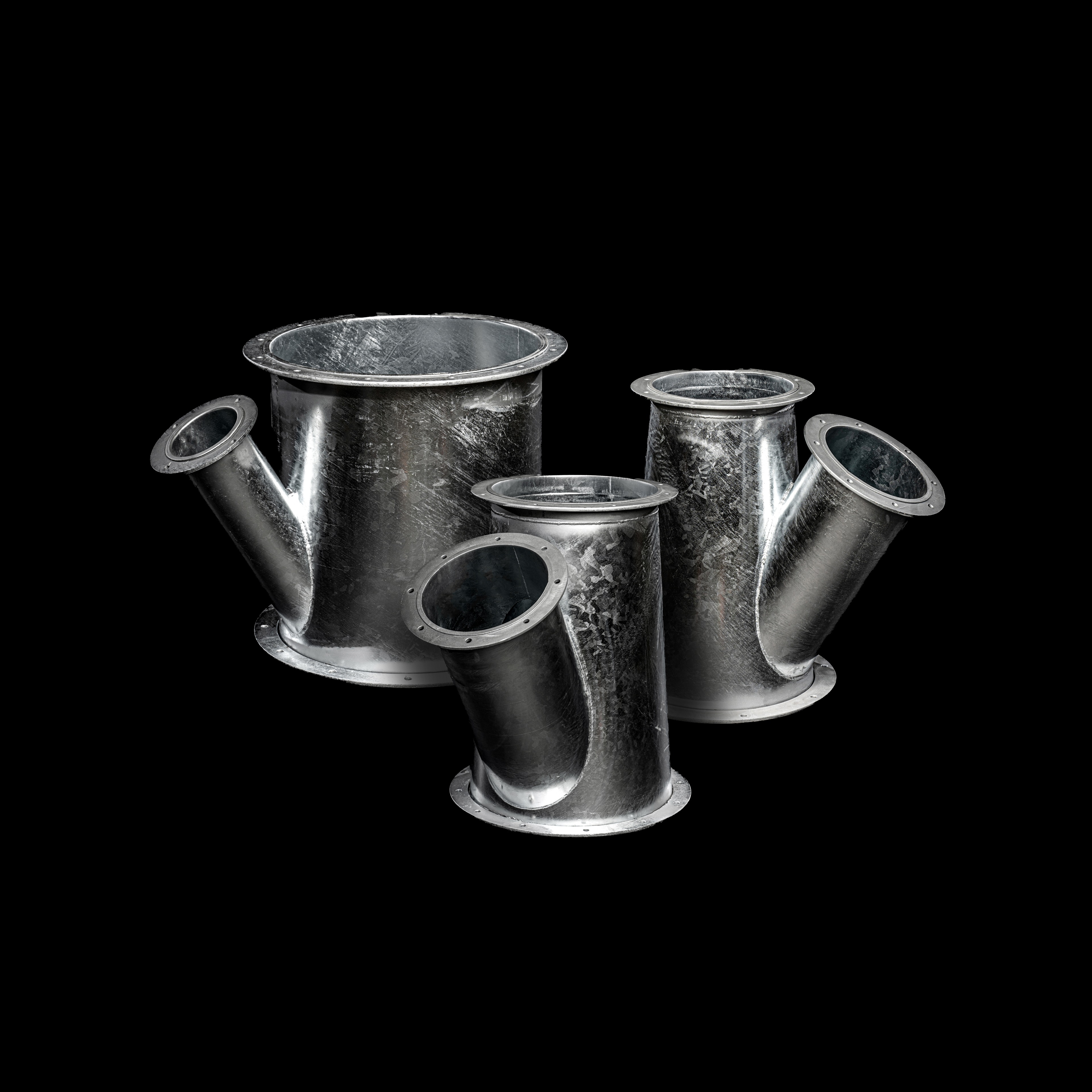

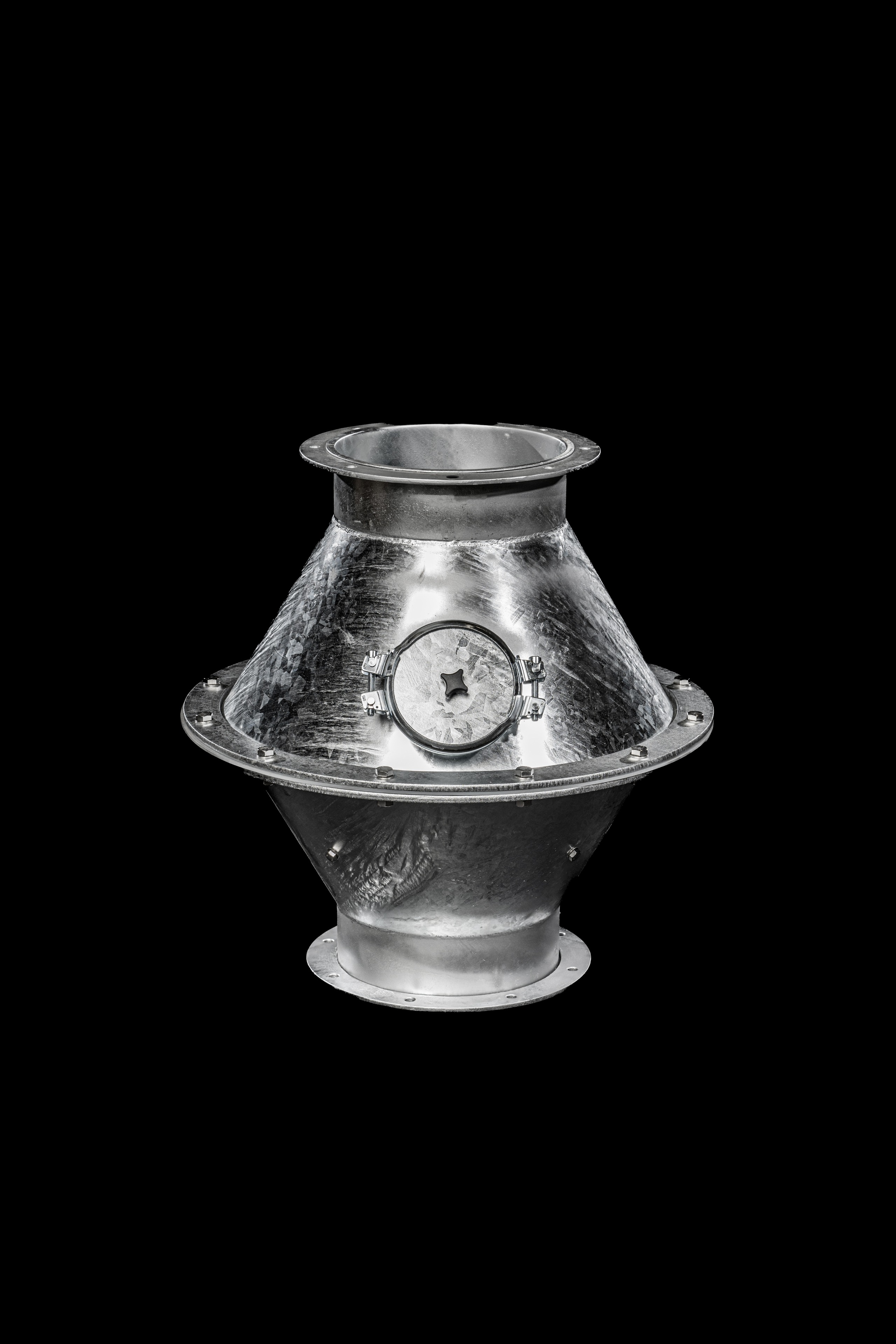

Flange piping

The flange piping is used for bulk material conveying and ventilation systems with special requirements for tightness. These connections also serve to stabilize the piping.

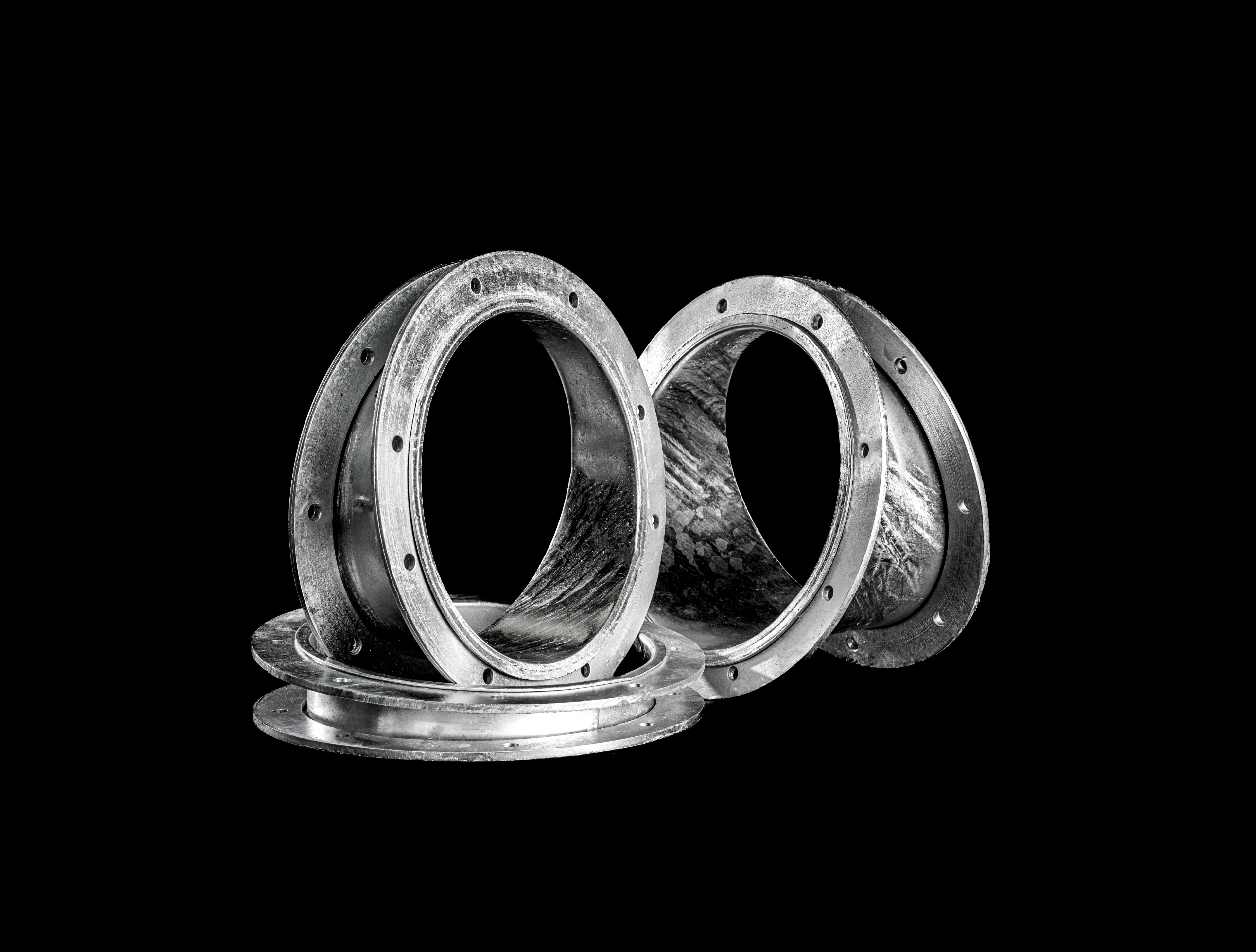

Our flange range offers loose and welded flanges - drilled according to DIN 24154 R2 - on both sides and is available with a sheet thickness of 1 - 3 mm in the diameters of 80 - 710 mm.
We advise this type of connection from a diameter of 350 mm.

Lips at loose flange system: 6 mm ± 1 mm  |  > DN 350 = 10 mm ± 1 mm
Welded flanges are welded "axis-free".

You can find further information in our price list for flange piping.
